اور پرشر ویکا

توضیحات

تجهیز صنعت وارد کننده محصولات ویکا آلمان فروش انواع  اور پرشر ویکا

هدف از طراحی محافظ فشار مازاد (Overpressure protector) محافظت از از تجهیزات اندازه گیری فشار است هنگامیکه فشار از محدوده یا رنج اندازه گیری مشخص شده تجهیز طی یک بازه زمانی تجاوز می کند.

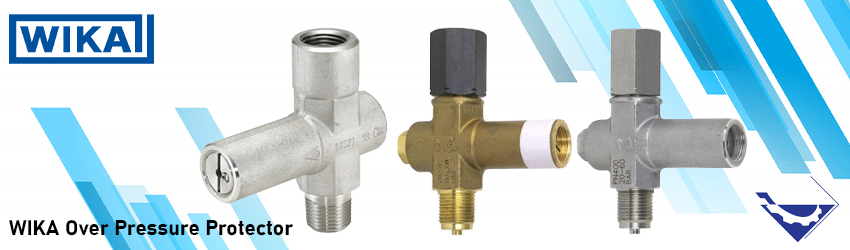

محافظ اورر پرشر ویکا  (Overpressure protector) از یک شیر ولو پیستونی فنری (spring loaded piston valve) تشکیل شده است. در شرایط عادی فشار فنر شیر ولو را باز نگه می دارد و سیال به عنصر حسگر می رسد.



اور پرشر ویکا



هنگامی که فشار سیستم از میزان تنظیم شده (ست شده) برای محافظ اورپرشر تجاوز می کند، به نیروی وارد شونده از طرف فنر غلبه می کند در نتیجه فنر به عقب رانده می شود و ولو بسته می شود و مسیر عبوری سیال به سمت سنسور فشار (ترانسمیتر فشار، ترانسدیوسر فشار) یا گیج فشار را مسدود می نماید.(اور پرشر ویکا)



ولو بسته باقی می ماند تا زمانی که فشار سیستم به میزان تقریبا 25 درصد پایین تر از فشار ست شده برگردد، جایی که بر اثر نیروی فنر، مجددا شیر باز می شود.

در نتیجه از تجهیزات اندازه گیری فشار در برابر افزایش فشار (فشار های مازاد) و ضربات فشار surge و spike جلوگیری می کند.

تنظیم محافظ اورر پرشر ویکا  (Overpressure protector):

تنظیم پیچ (چرخش پیچ) در جهت عقربه های ساعت ← بالا بردن فشار بسته شدن ولو
تنظیم پیچ (چرخش پیچ) در خلاف جهت عقربه های ساعت ← پایین آوردن فشار بسته شدن ولو

اور پرشر ویکا



Applications

Adjustable overpressure protectors are intended to protect pressure gauges against the effect of pressures exceeding their maximum pressure rating

Stainless steel version for corrosive pressure media, even in corrosive ambience

Process industry: mechanical engineering and plant construction, chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology

Special Features

Design with pressure connection form A resp. form B

7 different setting ranges selectable

Nominal pressure up to 600 bar

Overpressure safe up to 1,000 bar

Vacuum safe



Description

The overpressure protector consists of a spring loaded piston valve. Under normal pressure conditions the spring holds the valve open. When the system pressure exceeds the set pressure, the force exerted by the spring is overcome and the valve closes. The valve will remain closed until the system pressure drops approx. 25 % below the closing pressure, where-upon the force of the spring will open the valve.

:To change setting
Turn adjusting screw clockwise ⇒ closing pressure higher
(or anticlockwise ⇒ closing pressure lower)

Overpressure protectors must not be used as control devices!

Settings with factory mounting
The protector is set to 1.1 x maximum scale value when ordered together with a pressure gauge.

Standard features

Pressure connection
Form A: G ½ male / female
Form B: ½ NPT male / female
(see dimensions page 2)

Valve body wetted part
Material brass (with union nut from steel, rust-protected) or stainless steel (with union nut from stainless steel 1.4571) selectable.

O-Ring
FPM

Operating Temperature

+80 °C maximum
